Manufacturer catalog record · independently reviewed

Watts OFRES-0835-K

Manufacturer-listed salt-free conditioner record in the OneFlow family.

Salt-free conditionerEvidence still partialNot current inventory
Watts OFRES-0835-K

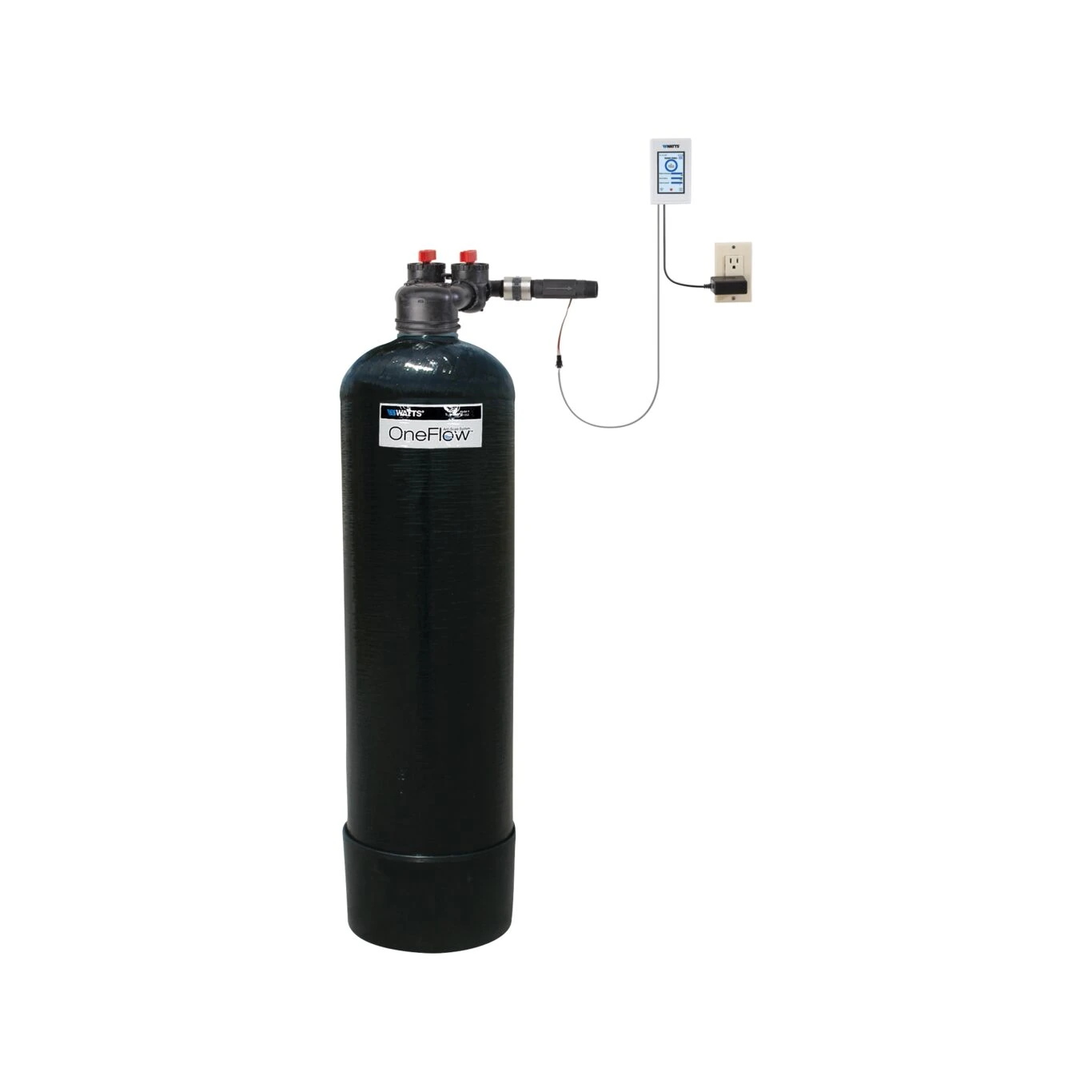

Product image associated with the cited manufacturer record.

Buyer and owner guide · reviewed Oct 7, 2026

At a glance: Watts OFRES-0835-K is the 8 gpm intermittent-flow OneFlow scale-conditioning kit in the reviewed engineering table. It leaves hardness minerals in the water. Match the supplied kit, incoming chemistry and simultaneous demand before using its compact tank size as a buying decision.

Water System Guide is an independent research publisher, not Watts support, a dealer or an installer. This document research covers the complete K-suffix model; current prices, stock, warranty terms and exact installed certification scope remain unverified.

Identify the complete 0835-K kit

Match OFRES-0835-K, ordering code 7100993, to the label and proposal. The K-suffix documentation covers a loaded OneFlow tank plus its bypass and U-M311 monitor arrangement. A bare tank, replacement-media bag or older non-K system is not the same supplied package.

The system overview shows the tank/head, bypass, 1-inch male-NPT elbows and monitor with meter and transformer. It does not list a sediment prefilter among those components. Have the seller itemize what is actually supplied, including adapters and any separate pretreatment. The manual discusses a 20-micron cartridge/housing for heavy dirt and debris; that is an application requirement to assess, not evidence of an included 5-micron filter. See installation cautions.

Read the 8 gpm rating with its limits

The 0835-K engineering table gives these reference values:

Item OFRES-0835-K
Maximum flow 8 gpm, intermittent use
Dry / service weight 21 / 86 lb
Drawing dimensions A / B 40 / 37 inches
Drawing dimensions C / D 13.5 / 12 inches
Connection 1-inch MNPT

The dealer catalog, printed page 9 identifies an 8 × 35-inch nominal tank and 2 liters of media. That tank diameter is not the width of the complete plumbing assembly. Allow additional connection clearance and the manual's service access above the tank.

The current 0835-K product page says 8 gpm in its heading and description but 16 gpm in its specification row. The exact engineering table supports 8 gpm. Do not size this unit as a 16 gpm system from that inconsistent webpage field.

Screen simultaneous demand before buying

Watts qualifies maximum service flow as intermittent, not continuous capability, for domestic water use in a single-family dwelling. Its sheet reports less than 10 psi pressure drop at peak flow using 80°F feed water. That documented test point is not a pressure guarantee for every installation. See flow qualifier and pressure-drop conditions.

For an illustrative 9 gpm simultaneous demand, the arithmetic exceeds this model's 8 gpm maximum. A 6 gpm example is below the maximum, but does not prove suitability for a sustained process. Ask the installer to assess measured supply pressure, concurrent fixtures, duration and all other equipment in the path. Headcount alone cannot settle that question. Use the OFRES-K comparison when a different flow size is needed.

Set the right treatment expectation

OFRES-0835-K is a scale conditioner, not an ion-exchange softener. It changes how hardness minerals form scale while leaving minerals in the water. There is no brine tank or salt-regeneration program for this treatment. A hardness result that remains high does not, by itself, show a failed unit.

The treatment and spotting notes also explain that residue or spotting can remain and recommends point-of-use softening where a spot-free result is mandatory. This model has no documented grain-capacity setting to copy from a conventional softener. It also should not be treated as a drinking-water disinfection or contaminant-removal system. Component material-safety statements do not establish an exact installed-kit performance certification.

Check the actual incoming water

The feed-water table and its footnotes apply to the small tank as well as the larger OFRES-K models:

Feed-water item Published requirement
pH 6.5–8.5
Hardness 30 gpg recommended maximum, with testing above it
Free chlorine Less than 2 ppm
Iron / manganese Table maxima 0.3 / 0.05 ppm
Copper Maximum 1.3 ppm
Total phosphates Less than 3.0 ppm
Silica Maximum 20 ppm, with aesthetic-residue qualification
TDS Less than 1,500 mg/L
Oil / hydrogen sulfide Remove before OneFlow

The private-well footnote calls for iron and manganese below those table maxima. The hardness recommendation concerns possible residue; it is not permission to omit testing above 30 gpg. OneFlow does not reduce silica scaling. Request a dated test with units and an explicit pretreatment decision, including sediment and any disinfecting requirement. More media cannot substitute for appropriate incoming-water chemistry.

Resolve pressure and temperature discrepancies

The OFRES-K operating table lists 15–90 psi water pressure and 40–100°F feed water. The supplied monitor guide lists 25–90 psi for its OFRES-K use. Do not approve a 15 psi supply for the complete monitored kit from the tank table alone; ask Watts or the installer to reconcile the minimum for the supplied components.

The 0835-K webpage lists 110°F, while the system documents limit feed water to 100°F. Keep the installation within the applicable written system limits. Treating a home's hot and cold uses means installing before the water-heating device, not assuming this kit belongs on a hot-water line. Protect it from freezing and confirm the treatment order and service layout with the matched installation instructions.

Plan the model-specific consumable and reminder

This model uses OFRES-0835RM, ordering code 7300096, with a published replacement interval of three years. The exact replacement mapping does not make it interchangeable with the 0935RM or 1035RM packs. Ask for the correct pack and replacement labor separately in a service quote.

The monitor overview describes an elapsed-time reminder and a volume meter. The displayed percentage is not a hardness test or a measurement of media fouling; the meter's separate 26 gpm capability does not increase this tank's 8 gpm limit. Notifications need configured power and 2.4 GHz Wi-Fi. Keep the physical replacement date independently, and use the media service guide for the matched mechanical work. A New Media Reset follows physical replacement; it does not renew old media. See reset boundary.

Get an installation record you can use later

Before accepting a proposal, obtain the full model/order code, current water test, pretreatment layout, demand calculation, pressure/temperature assessment, included components and service clearance. After commissioning, keep the installed label photo, media start date, bypass/service-path record and reminder setup. These are practical records for the next service visit, grounded in the setup and start-up checks.

Confirm current price, availability, exact certification scope and applicable warranty documents separately. This review verifies technical literature; it does not verify an offer or test performance in your home. For an existing scale complaint, the Watts fault guide helps separate a conditioning expectation from a genuine salt-based softener problem.

Frequently asked questions

Does Watts OFRES-0835-K soften water?

It is a OneFlow scale conditioner, not an ion-exchange softener. Hardness minerals remain in the water, so a hard-water reading alone does not establish failure.

Is OFRES-0835-K rated for 8 or 16 gpm?

The exact OFRES-K engineering table lists 8 gpm, qualified as intermittent use rather than continuous capability. The product webpage contains an inconsistent 16 gpm specification row; obtain a resolved model-specific proposal rather than using that row to increase the rating.

Which replacement media does the 0835-K use?

The reviewed mapping is OFRES-0835RM, ordering code 7300096, with replacement every three years. Confirm the installed label and actual service history before ordering or resetting the reminder.

Does the 0835-K kit include a sediment prefilter?

The reviewed system component overview does not establish an included sediment prefilter. Heavy dirt and debris may require separate pretreatment; the installation cautions discuss a 20-micron cartridge and housing. Ask the seller to itemize the supplied kit and any added filter.

Sources for this model guide

  1. Watts OFRES-K installation, operation and maintenance manual — IOM-OFRES-K 2201; copyright 2022; reviewed 2026-10-07.
  2. Watts OFRES-K engineering specification — ES-OFRES-K 2350; copyright 2023; reviewed 2026-10-07.
  3. Watts U-M311 monitor user guide — IOM-WQ-U-M311 2635; copyright 2026; reviewed 2026-10-07.
  4. Watts water-quality dealer catalog — C-WQ-Dealer 2604; copyright 2026; reviewed 2026-10-07.
  5. Watts OFRES-0835-K product page — Undated product page; current public reader capture; reviewed 2026-10-07.

Known product details

Manufacturer
Watts
Model or family
OFRES-0835-K
Catalog name
Watts OFRES-0835-K
Product category
Salt-free conditioner
Product family
OneFlow
Historical equipment price
No current verified price; equipment and installed-scope pricing require current confirmation.
Source reviewed
2026-08-16

Evidence and source boundary

Price and availability notes are historical source records, not live offers or stock checks. After any stated verification expiry, obtain a new seller check before relying on the value.

Manufacturer catalog presence was observed in the pinned source workbook. Current stock, dealer authorization, installation scheduling, and address-level service are not verified.

The controlling source for this catalog observation is watts.com, reviewed on 2026-08-16. A manufacturer page may change, redirect, or describe a family rather than every configuration; compare the exact current documentation before purchase.

What still needs confirmation

  • Certification: verify the exact model number, contaminant or reduction claim, standard, listing scope, and current certificate.
  • Sizing: match household demand, flow, plumbing, pressure, water chemistry, and waste/discharge requirements.
  • Ownership: confirm current equipment price, installation scope, consumables, maintenance intervals, warranty conditions, and service access.
  • Availability: manufacturer catalog presence does not establish current stock, dealer authorization, installer capability, or local availability.

How to use this record

  1. Copy the exact model or family name shown above.
  2. Open the cited manufacturer source and confirm that the current page still matches.
  3. Request the current model-specific specification sheet, certification listing, warranty, and installed-scope quote.
  4. Use water evidence and site constraints before comparing this product with alternatives.
