Manufacturer catalog record · independently reviewed

Watts OFRES-1035-K

Manufacturer-listed salt-free conditioner record in the OneFlow family.

Salt-free conditionerEvidence still partialNot current inventory
Watts OFRES-1035-K

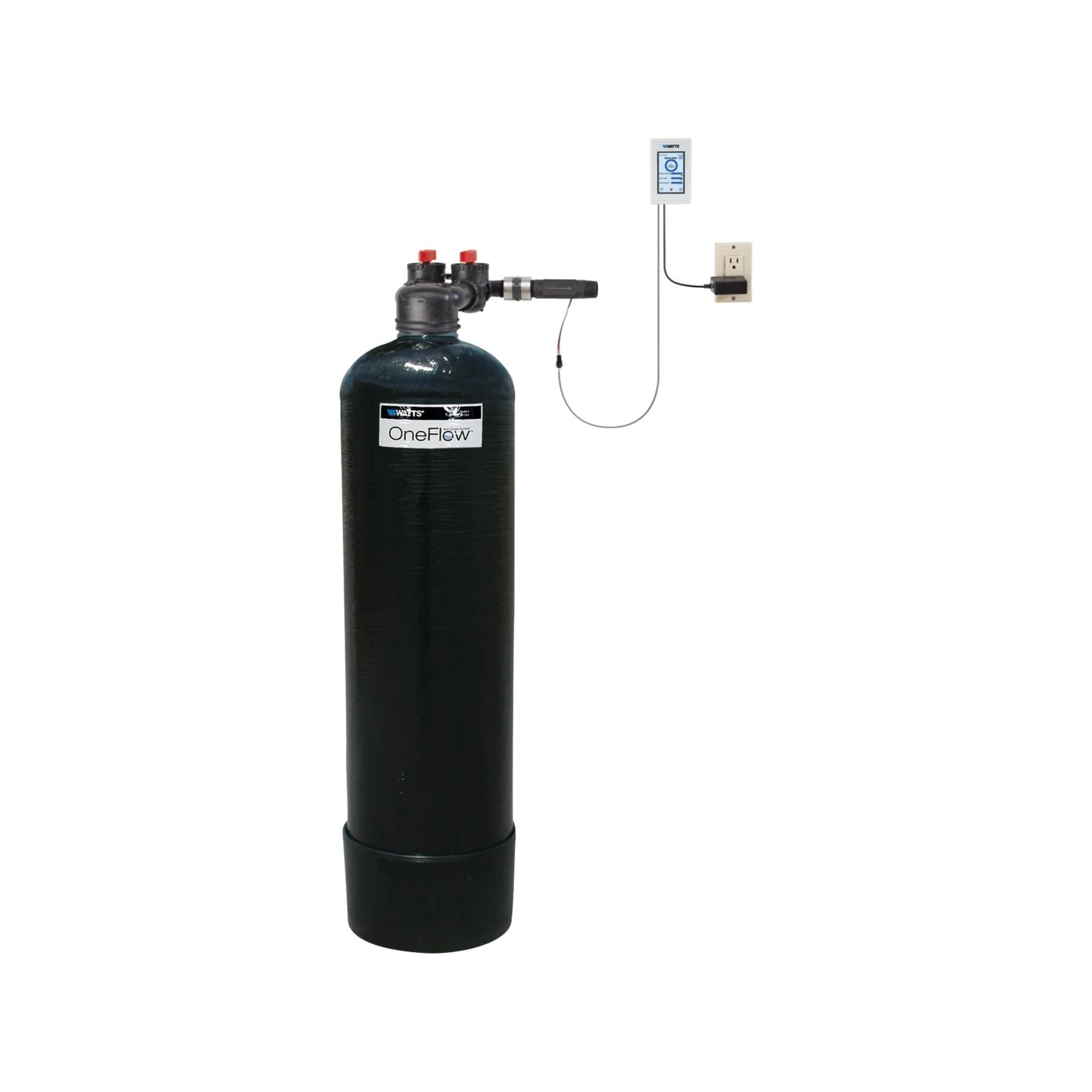

Product image associated with the cited manufacturer record.

Buyer and owner guide · reviewed Oct 7, 2026

At a glance: Watts OFRES-1035-K is the 16 gpm intermittent-flow OneFlow model in the reviewed engineering table, with 4 liters of media. It prevents hardness-related scale without removing hardness minerals. Its higher flow size does not relax chemistry limits, extend the three-year media interval or establish continuous-flow capability.

Water System Guide is an independent research publisher, not Watts support, a dealer or an installer. This document research covers the complete K-suffix model; current prices, stock, warranty terms and exact installed certification scope remain unverified.

Confirm the 1035-K system and its supplied parts

The complete identity is OFRES-1035-K, ordering code 7100995. The current Watts model page identifies a residential OneFlow system with smart monitor. The model name should appear on the proposal and installed label, not just the words “OneFlow” or “salt free.”

The component overview shows a loaded media tank/head, bypass, 1-inch male-NPT elbows and U-M311 monitor with meter and transformer. A bare vessel, spare media or monitor sold separately is not proof of that complete kit. Nor does this list establish an included sediment prefilter. Request a line-by-line supply list and any required upstream filtration. K-suffix system literature, older non-K literature and OneFlow cartridge products should not be mixed when confirming the equipment.

Use the 16 gpm table with its full qualification

The model-specific engineering table gives 16 gpm maximum flow, for intermittent use only. It does not establish continuous 16 gpm treatment. The 1035-K webpage lists 16 gpm in its heading and specification but 12 gpm in one descriptive sentence. Obtain clarification if a supplied quote repeats the inconsistent description.

Watts directs higher-volume applications to its representative. A hypothetical 18 gpm peak exceeds the documented maximum; a 14 gpm example is below it but still needs duration and installation review. These examples screen a rating, not prove suitability. The sheet's less-than 10 psi pressure drop at peak uses 80°F feed water. Ask the installer to account for the complete plumbing and pretreatment pressure loss, rather than treating that test point as a guaranteed fixture pressure.

Separate tank size, media quantity and usable space

The catalog model row, printed page 9 lists a 10×35-inch nominal tank with 4 liters of media. The complete-system drawing and weights list:

Item OFRES-1035-K
Dry / service weight 27 /128 lb
Drawing dimensions A / B 40 /37 inches
Drawing dimensions C / D 15.5 /13 inches
Connection 1-inch MNPT

The nominal tank size is not the installed assembly envelope. Match the drawing orientation, fittings, meter and service access to the actual space. The installation diagram calls for at least 2 feet above the mineral tank for filling media. Have the installer confirm support for the service weight and access before deciding that the larger tank fits.

More media does not create a softener capacity

Four liters describes the OneFlow media load. It is not a grain-capacity rating, a gallon allowance before regeneration or a lower-hardness output specification. OFRES-1035-K conditions hardness-related scale formation while leaving minerals in the water. There is no salt/brine regeneration program for this tank.

The OneFlow treatment and spotting guidance says OneFlow does not soften water and explains that external residue can remain. A larger tank addresses a documented flow-size choice, not every water-quality goal. Mandatory spot-free applications may need point-of-use softening. Material-safety or lead-free statements about components are not proof of complete-kit contaminant-removal performance. Confirm any required exact certification independently instead of inferring it from a brochure mark.

The larger tank keeps the same chemistry screen

The chemistry requirements and qualifications do not grant higher contaminant limits to OFRES-1035-K:

Incoming-water item Reviewed requirement
pH 6.5–8.5
Hardness 30 gpg recommended maximum; test higher levels
Free chlorine Less than 2 ppm
Iron / manganese Table maxima 0.3 /0.05 ppm
Copper Maximum 1.3 ppm
Total phosphates Less than 3.0 ppm
Silica Maximum 20 ppm; aesthetic qualification
TDS Less than 1,500 mg/L
Oil / hydrogen sulfide Remove before OneFlow

For private wells, Watts calls for iron and manganese below their listed table maxima. Excess metals can coat the active media. The 30 gpg recommendation relates to possible residue and calls for testing above it; it is not a universal performance guarantee. Silica scaling is not reduced by OneFlow. A larger tank cannot replace necessary pretreatment or adequate disinfection for unsafe or unknown-quality water. Bring a current water report to the application review.

Apply system limits to every supplied component

The system operating table gives 15–90 psi pressure and 40–100°F water temperature. The monitor operating table gives 25–90 psi for its OFRES-K use. The minimum-pressure discrepancy needs confirmation for the complete monitored kit; do not extend a component's permission to the entire assembly.

The 1035-K webpage lists 110°F, but the matched system literature caps feed water at 100°F. Its “hot and cold” wording does not authorize installing this kit on a hot-water supply. The specification places it before the heating device. Review the treatment order, freezing protection and whether any new copper plumbing needs its specified passivation period. The installation cautions also distinguish additional sediment pretreatment from the OneFlow tank.

Match replacement media and the elapsed-time monitor

The documented replacement is OFRES-1035RM, ordering code 7300098, every three years. That interval remains three years despite the larger media load; do not double it because this model contains four rather than two liters. The mapping is in the replacement-media table.

The U-M311 overview and component flow limit calls the monitor an elapsed-time device. It tracks the service schedule and water volume, not measured hardness or media chemistry. Its 26 gpm meter rating is explicitly for the meter alone and does not increase the 1035-K's 16 gpm intermittent limit. Remote alerts require configured power and 2.4 GHz Wi-Fi. Record the actual replacement date independently, and perform New Media Reset only after physical media replacement. See new-media reset instructions and the matched media-service guide.

Ask for a documented application and handover

A useful 1035-K proposal explains the exact model, measured concurrent demand and duration, pressure/temperature limits, water-test results, pretreatment and physical layout. Ask which supplied document resolves the conflicting webpage numbers. Include the matched replacement pack, replacement labor and monitor setup in the ownership plan. The start-up requirements make component checks and proper commissioning part of the installation.

Keep the label photo, commissioning date, water report and service record. Confirm current equipment/installation prices, stock, exact certification scope and warranty terms with the appropriate current documents; this review verifies none of those commercially. For a scale complaint, record the change and use the Watts diagnostic guide before assuming that more media or repeated monitor resets are the remedy.

Frequently asked questions

Is OFRES-1035-K rated for 12 or 16 gpm?

The exact engineering table lists 16 gpm maximum, qualified for intermittent use rather than continuous capability. The product page contains a 12 gpm descriptive sentence despite its 16 gpm heading and specification; ask Watts to resolve any conflicting proposal.

Does four liters mean a higher softening grain capacity?

Four liters is the reviewed OneFlow media quantity, not an ion-exchange grain-capacity rating. OFRES-1035-K leaves hardness minerals in the water and has no brine-regeneration capacity setting.

Can OFRES-1035-K treat private-well water automatically?

A well-water application needs actual test results and review of the same chemistry limits as the smaller OFRES-K models. Iron, manganese, sediment and other conditions may require pretreatment; the tank does not establish safe drinking water or replace adequate disinfection.

Does the 26 gpm flow meter increase the 1035-K rating?

No. The U-M311 guide labels 26 gpm as the meter-alone maximum. The complete 1035-K system remains limited by its model-specific 16 gpm intermittent rating and all other operating requirements.

Sources for this model guide

  1. Watts OFRES-K installation, operation and maintenance manual — IOM-OFRES-K 2201; copyright 2022; reviewed 2026-10-07.
  2. Watts OFRES-K engineering specification — ES-OFRES-K 2350; copyright 2023; reviewed 2026-10-07.
  3. Watts U-M311 monitor user guide — IOM-WQ-U-M311 2635; copyright 2026; reviewed 2026-10-07.
  4. Watts water-quality dealer catalog — C-WQ-Dealer 2604; copyright 2026; reviewed 2026-10-07.
  5. Watts OFRES-1035-K product page — Undated product page; current public reader capture; reviewed 2026-10-07.

Known product details

Manufacturer
Watts
Model or family
OFRES-1035-K
Catalog name
Watts OFRES-1035-K
Product category
Salt-free conditioner
Product family
OneFlow
Historical equipment price
No current verified price; equipment and installed-scope pricing require current confirmation.
Source reviewed
2026-08-16

Evidence and source boundary

Price and availability notes are historical source records, not live offers or stock checks. After any stated verification expiry, obtain a new seller check before relying on the value.

Manufacturer catalog presence was observed in the pinned source workbook. Current stock, dealer authorization, installation scheduling, and address-level service are not verified.

The controlling source for this catalog observation is watts.com, reviewed on 2026-08-16. A manufacturer page may change, redirect, or describe a family rather than every configuration; compare the exact current documentation before purchase.

What still needs confirmation

  • Certification: verify the exact model number, contaminant or reduction claim, standard, listing scope, and current certificate.
  • Sizing: match household demand, flow, plumbing, pressure, water chemistry, and waste/discharge requirements.
  • Ownership: confirm current equipment price, installation scope, consumables, maintenance intervals, warranty conditions, and service access.
  • Availability: manufacturer catalog presence does not establish current stock, dealer authorization, installer capability, or local availability.

How to use this record

  1. Copy the exact model or family name shown above.
  2. Open the cited manufacturer source and confirm that the current page still matches.
  3. Request the current model-specific specification sheet, certification listing, warranty, and installed-scope quote.
  4. Use water evidence and site constraints before comparing this product with alternatives.
