HALO H-CK10-200

Manufacturer-listed water softener record in the CK10 family.

Water softenerEvidence still partialNot current inventory
HALO H-CK10-200

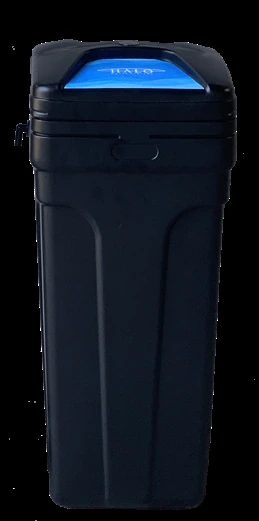

Product image associated with the cited manufacturer record.

Buyer and owner guide · reviewed Oct 8, 2026

At a glance: The H-CK10-200 is the middle size of HALO's CK10 salt softener: a 12 x 52-inch mineral tank, 2 of resin, an 18 x 36-inch brine tank and a 16 gpm peak flow. HALO does not publish its grain capacity. The programmed capacity and salt per regeneration, which the installer sets, decide how it performs.

Water System Guide is an independent research publisher. This model-specific document review was completed October 8, 2026. It is not a household performance test, installer quote or confirmation of current warranty, stock, price or certification records.

The CK10-200 specification

HALO's CK10 spec sheet (December 2024) lists the H-CK10-200 with a 12 x 52-inch mineral tank, 2 in the resin column, an 18 x 36-inch brine tank and a 16 gpm peak flow. The series includes a high-flow bypass and 1-inch plastic elbow connectors. The sheet limits it to cold water, no more than 80 psi, 40–100°F and residential use, and says it must not freeze.

The sheet heads the resin column "SQ FT." Resin is measured by volume, so confirm with the installer that the tank holds 2 cubic feet. The CK10-150 (10 x 54 inches, 1.5, 14 gpm) and CK10-250 (13 x 54 inches, 2.5, 18 gpm) share the same brine tank. See CK10-150 vs 200 vs 250.

Estimating its grain capacity

HALO publishes no grain rating for the CK10-200. The CK10 operating manual, page 5, gives general exchange data of about 20,000 grains per cubic foot alongside 6 pounds of salt and about 25,000 alongside 8 pounds, without saying whether the salt is per cubic foot or per regeneration. By our arithmetic, 2 cubic feet works out to roughly 40,000–50,000 grains. That is an estimate, not a HALO rating.

The value that governs the softener is the ion-exchange capacity the installer enters "based on test data" in the OEM set-up, together with pounds of salt per regeneration (manual, page 12). Ask for both in writing.

Settings owners and installers use

The manual says only time of day and hardness need setting at start-up (page 10). It recommends setting hardness 10% above the measured value plus 2 grains per ppm of iron. NEXT and the up arrow open the installer settings: hardness (default 20), day override (1–28 or off) and regeneration time (default 2:00 a.m.) (page 14). Holding REGEN for 3 seconds starts a regeneration immediately.

The manual reserves advanced programming and diagnostics for technicians (page 11). If "ERROR" and a number flash, it says to contact the OEM. Our CK10 settings guide walks through each screen.

Salt and iron maintenance

The manual recommends nugget, pellet or coarse solar salt of at least 99.5% purity. It says not to use rock, block, granulated or ice-cream-making salt, or salt with iron-removing additives, and describes checking for salt bridges (page 11). If the water contains iron, it recommends cleaning the resin bed at least every six months.

If the brine tank ran empty, add salt and wait at least two hours before regenerating (page 15). A CK10-200 that has salt but still delivers hard water needs the checks in our HALO not-softening guide.

Warranty: pretreatment matters

HALO's CK10 warranty (July 2025) gives the valve and electronics 5 years from the date of manufacture shown by the serial number, or from a proven purchase or installation date. It gives one replacement tank within 10 years of purchase and 1 year on resin. The valve and resin terms extend to 10 years when a HALO 5, H2 Zero or Mini system pretreats the CK10.

Media and internal valve parts are not covered on feed water at or above 1 ppm chlorine. The warranty requires 33–120°F and 40–80 psi, excludes labor and does not transfer to a later owner. See our HALO warranty guide.

Frequently asked questions

What size is the HALO CK10-200?

HALO lists a 12 x 52-inch mineral tank, 2 of resin, an 18 x 36-inch brine tank and a 16 gpm peak flow for the H-CK10-200.

How many grains is a HALO CK10-200?

HALO does not publish a grain rating. Using the CK10 manual's exchange data of about 20,000 to 25,000 grains per cubic foot, 2 cubic feet of resin works out to roughly 40,000 to 50,000 grains. That is an estimate, not a HALO rating.

How do I set the hardness on a CK10-200?

The CK10 manual says to press NEXT and the up arrow together for 3 seconds and set hardness in grains per gallon. It recommends 10% above the measured value plus 2 grains per ppm of iron.

Is the CK10-200 resin warranty 10 years?

Only with HALO pretreatment. The July 2025 CK10 warranty covers resin for 1 year, extended to 10 years when a HALO 5, H2 Zero or Mini system pretreats the softener.

Sources for this model guide

  1. HALO CK10 spec sheet — Dated 12-5-24 in filename; copyright 2024; reviewed 2026-10-08.
  2. CK10 operating manual and programming guide posted by HALO — Uploaded November 2024; no HALO revision in document; reviewed 2026-10-08.
  3. HALO CK10 softening system limited warranty — Dated 7-13-25 in filename; reviewed 2026-10-08.

Known product details

Manufacturer
HALO
Model or family
H-CK10-200
Catalog name
HALO CK10 Softener H-CK10-200
Product category
Water softener
Product family
CK10
Water-source fit
City water, Well water
Historical equipment price
No current verified price; equipment and installed-scope pricing require current confirmation.
Source reviewed
2026-08-16

Evidence and source boundary

Price and availability notes are historical source records, not live offers or stock checks. After any stated verification expiry, obtain a new seller check before relying on the value.

Manufacturer catalog presence was observed in the pinned source workbook. Current stock, dealer authorization, installation scheduling, and address-level service are not verified.

The controlling source for this catalog observation is halowater.com, reviewed on 2026-08-16. A manufacturer page may change, redirect, or describe a family rather than every configuration; compare the exact current documentation before purchase.

What still needs confirmation

  • Certification: verify the exact model number, contaminant or reduction claim, standard, listing scope, and current certificate.
  • Sizing: match household demand, flow, plumbing, pressure, water chemistry, and waste/discharge requirements.
  • Ownership: confirm current equipment price, installation scope, consumables, maintenance intervals, warranty conditions, and service access.
  • Availability: manufacturer catalog presence does not establish current stock, dealer authorization, installer capability, or local availability.

How to use this record

  1. Copy the exact model or family name shown above.
  2. Open the cited manufacturer source and confirm that the current page still matches.
  3. Request the current model-specific specification sheet, certification listing, warranty, and installed-scope quote.
  4. Use water evidence and site constraints before comparing this product with alternatives.
