Manufacturer catalog record · independently reviewed

HALO H-H2Z1252-ULT

Manufacturer-listed whole-home filtration record in the H2 ZERO Ultimate family.

Whole-home filtrationEvidence still partialNot current inventory
HALO H-H2Z1252-ULT

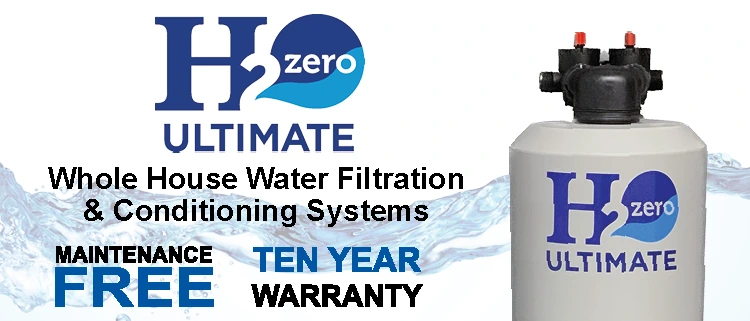

Product image associated with the cited manufacturer record.

Buyer and owner guide · reviewed Oct 15, 2026

At a glance: HALO H-H2Z1252-ULT is the 1.25–1.5-inch H2 Zero Ultimate tank: activated carbon and a HALO ION magnetic conditioner in one vessel, with no salt, drain or electricity. It filters chlorine and conditions hardness minerals, but it does not remove them. Check the published flow, feed-water limits and installation steps before accepting a proposal.

Water System Guide is an independent research publisher. This model-specific document review was completed October 15, 2026. It is not a household performance test, installer quote or confirmation of current warranty, stock or certification records.

What H-H2Z1252-ULT treats, and what it does not

The H2 Zero Ultimate product page describes one tank holding High Activity Carbon for free-chlorine, taste and odor reduction, plus the proprietary HALO ION inline conditioner. The ION uses permanent magnetic fields so that calcium and magnesium stay suspended rather than forming scale. The page lists zero electricity, zero backwash and zero waste. HALO directs buyers who want carbon with scale media instead of the ION to the separate H2 Zero line.

Because the ION conditions rather than exchanges ions, hardness stays in the water. A hardness test after installation will not show a drop, and that alone is not evidence of a fault. The specification sheet says its HAC/KDF55 carbon "meets or exceeds NSF/ANSI Certifications under NSF Standard 42". That is a statement about the media; this review did not find a system-level listing for H-H2Z1252-ULT.

Published H-H2Z1252-ULT specifications

The H2 Zero Ultimate specification, page 2 lists part H2Z1252-ULT-150 with a 1.25–1.5 inch main size, 14 gpm service flow, 19 gpm peak flow, 15 psi minimum and 80 psi maximum pressure, and 40–110 °F operating temperature. Its dimensions are 145.5 lb ship weight and 14 × 14 × 63 inches (length, width, height). The product page lists H-H2Z1252-ULT for 1.25–1.5-inch lines.

The sheet prints this row as H2Z1252-ULT-150, while the catalog and product page use H-H2Z1252-ULT. Ask the seller to confirm that both refer to the same 12 × 52-class tank. Confirm the exact part on the quote and the label. For a larger service, the H-H2Z1054-ULT-100 row lists different flow and dimensions, so do not copy figures between the two sizes.

Check the water against the feed-water limits

The installation manual, page 5 lists feed-water requirements of 15–80 psi, 40–100 °F, free chlorine below 2 ppm, pH 6.5–8.5, iron no more than 0.3 ppm, manganese no more than 0.05 ppm and copper 1.3 ppm. It also says the system does not reduce silica scaling. The manual's 100 °F temperature limit is lower than the sheet's 110 °F, so plan to the narrower figure.

The specification warnings say conditioning results may vary above 25 grains per gallon and that the system is intended for municipal potable water. HALO requires a current well-water analysis for well installations, and says skipping it voids all warranties. Bring a recent water report rather than relying on a hardness strip alone.

Plan for the carbon soak, flush and Sediment Guard

The installation manual, page 6 requires the carbon tank to soak for 48 hours, on site in bypass or off site. Flushing follows: 5 minutes on and 2 minutes rest, at least six times, until a white cup shows clear water free of carbon fines. The specification sheet says the system will not be ready for at least 24 hours. Treat the manual's 48-hour soak as the working plan, because it is the longer requirement.

A Sediment Guard (H-SG510 or H-SG520) is included and must be installed after the tank. It filters down to 5 microns and is not a substitute for soaking and flushing. The manual says to replace its filter yearly. A hose bib and a ball valve are required downstream of the unit.

Read the 10-year warranty conditions

The H2 Zero Ultimate warranty provides one replacement tank for a manufacturing defect, repair or replacement of defective control-valve parts for 10 years, and replacement carbon media for 10 years after installation for media failure, excluding freight and handling. The product page also lists a 10-year warranty on the HALO ION.

The conditions matter more than the headline. Pressure must be regulated to 40–80 psi, water temperature kept at 33–110 °F and influent chlorine at no more than 1 mg/L. A licensed contractor must install the system, and units bought outside authorized distribution are excluded. HALO does not pay for labor or on-site service. Keep the invoice, serial and model number, and installation photos.

Frequently asked questions

Does HALO H-H2Z1252-ULT soften water?

No. H-H2Z1252-ULT pairs carbon filtration with the HALO ION magnetic conditioner. Hardness minerals stay in the water, so a hardness test will not drop. Actual hardness removal needs an ion-exchange softener.

What is the H-H2Z1252-ULT flow rate?

The manufacturer specification lists 14 gpm service flow and 19 gpm peak flow for the 1.25–1.5 inch main size, at 15–80 psi.

How long before H-H2Z1252-ULT can be used after installation?

The installation manual calls for a 48-hour carbon soak followed by repeated 5-minute flushes until the water runs clear. The specification sheet gives a 24-hour minimum, so plan for the longer manual figure.

What does the H-H2Z1252-ULT warranty require?

The 10-year warranty requires 40–80 psi regulated pressure, 33–110 °F water, influent chlorine no higher than 1 mg/L, a licensed contractor install and purchase through authorized distribution. Labor and freight are not covered.

Sources for this model guide

  1. HALO H2 Zero Ultimate manufacturer specification — Rev.3326 filename; copyright 2024 in document; reviewed 2026-10-15.
  2. HALO H2 Zero Ultimate manufacturer installation manual — Document 68111023, Rev.3326 filename; reviewed 2026-10-15.
  3. HALO H2 Zero Ultimate manufacturer warranty — Rev.3326 filename; copyright 2026 in document; reviewed 2026-10-15.
  4. HALO H2 Zero Ultimate manufacturer product page — Undated current product page; reviewed 2026-10-15.

Known product details

Manufacturer
HALO
Model or family
H-H2Z1252-ULT
Catalog name
H2 ZERO Ultimate H-H2Z1252-ULT
Product category
Whole-home filtration
Product family
H2 ZERO Ultimate
Historical equipment price
No current verified price; equipment and installed-scope pricing require current confirmation.
Source reviewed
2026-08-16

Evidence and source boundary

Price and availability notes are historical source records, not live offers or stock checks. After any stated verification expiry, obtain a new seller check before relying on the value.

Manufacturer catalog presence was observed in the pinned source workbook. Current stock, dealer authorization, installation scheduling, and address-level service are not verified.

The controlling source for this catalog observation is halowater.com, reviewed on 2026-08-16. A manufacturer page may change, redirect, or describe a family rather than every configuration; compare the exact current documentation before purchase.

What still needs confirmation

  • Certification: verify the exact model number, contaminant or reduction claim, standard, listing scope, and current certificate.
  • Sizing: match household demand, flow, plumbing, pressure, water chemistry, and waste/discharge requirements.
  • Ownership: confirm current equipment price, installation scope, consumables, maintenance intervals, warranty conditions, and service access.
  • Availability: manufacturer catalog presence does not establish current stock, dealer authorization, installer capability, or local availability.

How to use this record

  1. Copy the exact model or family name shown above.
  2. Open the cited manufacturer source and confirm that the current page still matches.
  3. Request the current model-specific specification sheet, certification listing, warranty, and installed-scope quote.
  4. Use water evidence and site constraints before comparing this product with alternatives.
