HALO H5-125

Manufacturer-listed whole-home filtration record in the HALO 5 family.

Whole-home filtrationEvidence still partialNot current inventory
HALO H5-125

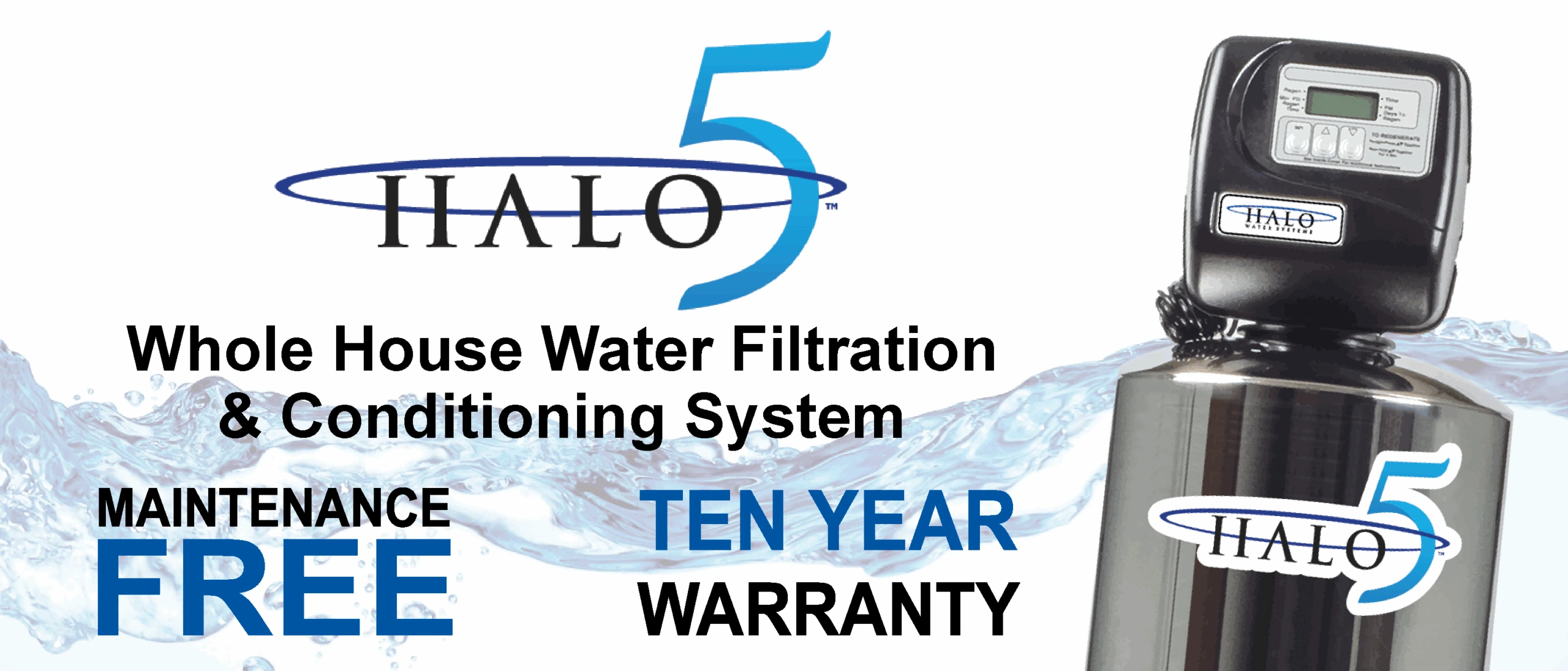

Product image associated with the cited manufacturer record.

Buyer and owner guide · reviewed Oct 8, 2026

At a glance: H5-125 is the 1.25-inch HALO 5 filtration and conditioning configuration. Its published 1.5-million-gallon capacity is based on chlorine reduction at 1 ppm incoming chlorine. It does not remove hardness by ion exchange, and its connection size does not establish a verified treatment-flow rating.

Water System Guide is an independent research publisher. This exact-model document review was completed October 8, 2026; it is not a household test, dealer quote or verification of current warranty, certification, stock or local installation service.

Match H5-125 to the 1.25-inch configuration

The manufacturer's model table, page 2 identifies H5-125 as the HALO 5 configuration with 1.25-inch inlet/outlet connections. It lists a 12×52-inch tank, 59-inch assembled system height, 12-inch width and depth, and 121-pound weight. Keep the model number on the quote; “HALO 5” alone does not distinguish this equipment from H5-100, H5-150 or H5-200.

The tank's 52-inch height and the system's 59-inch height describe different things. Use the assembled figure when checking a proposed location, then have the installer allow for the actual fittings, valve access and removal of equipment for service. The sheet does not provide a drawing of every installed plumbing arrangement or label its listed weight as the complete operating load. Photograph the available space and ask for the installed footprint and support requirements.

Read 1.5 million gallons with its chlorine condition

H5-125's published capacity is 1,500,000 gallons, and the same specification footnote bases the capacities on chlorine reduction at 1 ppm incoming chlorine. That is a filtration figure under a stated condition. It is not a grain-capacity rating, a measured result for your home or a promise of a particular replacement year.

Before accepting a lifespan claim, record the inlet disinfectant, its concentration and the water use used in the estimate. Ask the seller how the quoted service plan applies the published basis to those inputs. HALO's end-of-life FAQ describes chlorine returning after approximately one million gallons specifically for H5-100; it does not supply an identical H5-125 threshold. Obtain the H5-125 monitoring and replacement criteria rather than carrying over the smaller model's example.

Check the treatment goal before interpreting a hardness test

The HALO 5 product description describes filtration media followed by HALO ION conditioning. This is a different treatment arrangement from a CK10 salt softener. HALO's hardness-test FAQ says the minerals remain present after conditioning. Therefore, hardness still showing on a test is not by itself evidence that H5-125's filtration stage has failed.

Make separate entries for the problems you want addressed: chlorine taste, suspended material, deposits, or lower measured hardness. Ask which component is responsible for each and what test or documented performance evidence will verify the outcome. If an invoice includes H5-125 and a separate softener, identify the two devices and the sampling points between them. A combined installation name does not give this HALO 5 tank an ion-exchange function.

A 1.25-inch connection does not establish a service-flow rating

The H5-125 table gives dimensions and connection size but no model-specific service-flow or pressure-loss curve. Do not convert the port size into a verified gallons-per-minute rating. Similarly, the 3.5 gpm backwash example in HALO's FAQ is explicitly for H5-100; it is not the published H5-125 drain requirement.

Prepare two sizing questions. First, what treatment flow and pressure behavior should be expected when the home's major fixtures operate together? Second, what discharge must the drain accept during this model's backwash? Give the installer the simultaneous uses and measured supply conditions. Ask for the exact model data used for both answers, including any pressure-loss condition. A larger connection can matter to plumbing fit without resolving treatment capacity at peak demand.

Confirm the water source and operating conditions

The specification qualifications describe potable municipal water, cold-water treatment and a maximum of 80 psi. They require a current well-water analysis for HALO's review and recommendation when a well is involved. The installation guide, page 3 describes a 25–80 psi range and protection from freezing. These document conditions belong in the installation discussion; they do not substitute for a site assessment.

The sheet warns that conditioning results may vary above 25 grains per gallon. Keep the actual hardness result and units with the proposal rather than assuming the filter will make that measurement disappear. It also requires adequate disinfection for microbiologically unsafe or unknown-quality water. If the concern is safety or a particular contaminant, obtain a treatment design and matching performance evidence for that concern.

Retain the commissioned backwash schedule

The matched HALO 5 guide describes powered automatic backwash and a ten-minute cycle. Its programming page depicts SET and arrow controls. The overview says weekly operation, while page 6 recommends different intervals according to household size. Keep the schedule selected for your installation; a family overview is not a reason to experiment with menus.

At handover, have the installer record the clock, selected interval, drain arrangement and controller identification. Ask which instructions apply if the head looks different from the reviewed image. CK10 sequences using NEXT or REGEN belong to another controller. A persistent drain flow, display fault or changed water result is useful information to photograph and report, rather than a reason to apply a generic reset. The separate maintenance guide gives broader owner checks.

Use the quote to close model-specific evidence gaps

The HALO 5 guide's certification note distinguishes material-safety and lead-free scope from contaminant-reduction, performance and structural-integrity certification. That distinction matters when a seller uses a family logo beside a specific reduction claim. Request the current exact configuration record and evidence for the substance or outcome being promised.

Ask for an itemized H5-125 proposal covering the tank, conditioning component, bypass, drain and electrical work, commissioning checks, future media service, and current warranty terms. Separate equipment cost from installation and recurring service. The current manufacturer product page links supporting literature, but it does not establish this address's installed price or appointment availability. Save the matched documents and startup results with the invoice so later service can refer to the same configuration.

Frequently asked questions

What capacity does HALO H5-125 list?

The specification lists 1,500,000 gallons, based on chlorine reduction at 1 ppm incoming chlorine. That is not a grain rating or a guaranteed replacement year for every water supply.

Will H5-125 make a hardness test read soft?

HALO says calcium remains after conditioning. H5-125 is filtration and conditioning, not an ion-exchange salt softener; a hardness reading alone does not establish filtration failure.

What space and connection size does H5-125 need?

The table lists 1.25-inch connections, a 12 × 52-inch tank, 59-inch system height, 12-inch width and depth, and 121-pound weight. Have the installer confirm the complete footprint, operating support and service clearances.

Can I use the H5-100 flow or backwash figures for H5-125?

No exact H5-125 service-flow curve or backwash rate was found in the reviewed model table. The manufacturer FAQ’s 3.5 gpm backwash example is for H5-100 and should not be transferred to H5-125.

Sources for this model guide

  1. HALO 5 exact-model specification; manufacturer primary; observed October 8, 2026 — Rev.3326 filename; body copyright 2024 and no edition date; reviewed 2026-10-08.
  2. HALO 5 installation/programming guide; manufacturer primary; observed October 8, 2026 — 68110751; Rev.3326 filename; undated body; reviewed 2026-10-08.
  3. HALO 5 product page and linked documents; manufacturer primary; observed October 8, 2026 — Undated product page observed 2026-10-08; reviewed 2026-10-08.
  4. HALO manufacturer FAQ; observed October 8, 2026 — Undated manufacturer FAQ observed 2026-10-08; reviewed 2026-10-08.

Known product details

Manufacturer
HALO
Model or family
H5-125
Catalog name
HALO 5 Whole House Filtration & Conditioning H5-125
Product category
Whole-home filtration
Product family
HALO 5
Historical equipment price
No current verified price; equipment and installed-scope pricing require current confirmation.
Source reviewed
2026-08-16

Evidence and source boundary

Price and availability notes are historical source records, not live offers or stock checks. After any stated verification expiry, obtain a new seller check before relying on the value.

Manufacturer catalog presence was observed in the pinned source workbook. Current stock, dealer authorization, installation scheduling, and address-level service are not verified.

The controlling source for this catalog observation is halowater.com, reviewed on 2026-08-16. A manufacturer page may change, redirect, or describe a family rather than every configuration; compare the exact current documentation before purchase.

What still needs confirmation

  • Certification: verify the exact model number, contaminant or reduction claim, standard, listing scope, and current certificate.
  • Sizing: match household demand, flow, plumbing, pressure, water chemistry, and waste/discharge requirements.
  • Ownership: confirm current equipment price, installation scope, consumables, maintenance intervals, warranty conditions, and service access.
  • Availability: manufacturer catalog presence does not establish current stock, dealer authorization, installer capability, or local availability.

How to use this record

  1. Copy the exact model or family name shown above.
  2. Open the cited manufacturer source and confirm that the current page still matches.
  3. Request the current model-specific specification sheet, certification listing, warranty, and installed-scope quote.
  4. Use water evidence and site constraints before comparing this product with alternatives.
