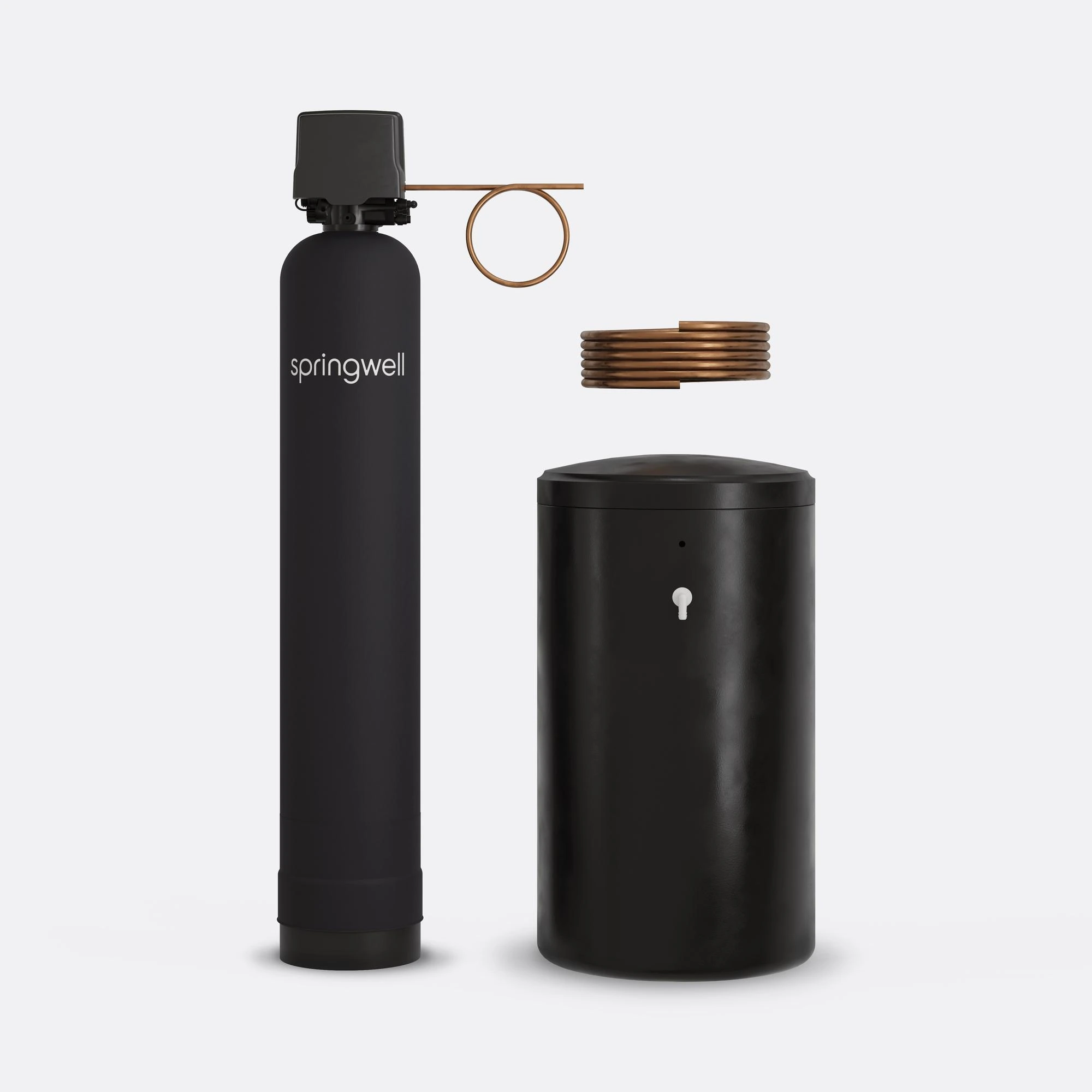

Product image associated with the cited manufacturer record.

Buyer and owner guide · reviewed Oct 8, 2026

At a glance: SpringWell’s salt-based softener listing covers SS1, SS4 and SS+, rather than one exact model. The versions have different published flow, grain and installation figures. Choose from a documented hardness load and simultaneous demand, then resolve the current size-guide conflict and match the selected system’s control and supplied equipment.

Water System Guide is an independent research publisher, not SpringWell support, a dealer or an installer. This family explanation uses freshly captured manufacturer sources; it does not approve one exact configuration or verify current prices, stock, warranty entitlement, certification or local service.

Write SS1, SS4 or SS+ on the proposal

The current salt-based family page offers SS1, SS4 and SS+, also labeled Core, Pro and Max. This catalog route covers that family; it is not a single exact model. Get the selected model written on the quote, supplied tank/control record and applicable installation instructions.

The salt-based system removes hardness by ion exchange and uses brine to regenerate the resin. SpringWell’s salt-free support explanation distinguishes conditioning, which does not remove hardness. Do not use a FutureSoft flow claim, media-care instruction or salt-free result as an SS specification. If a package includes filtration too, identify that separate equipment and treatment job. The salt-based versus FutureSoft comparison handles the broad technology decision; the selection checks here apply after deciding that lower measured hardness is your goal.

Compare the named technical rows without erasing the flow conflict

The current technical specifications give these model-specific figures; the manual specification page corroborates SS1/SS4 but has no equivalent SS+ table:

Selected version Technical service flow Listed grain figure Tank width / height with head Backwash figure and source
SS1 11 gpm 32K 9 / 57 inches 2 gpm, manual
SS4 13 gpm 48K 10 / 63 inches 2.4 gpm, manual
SS+ 20 gpm 80K 13 / 63 inches 4 gpm, product page

The same current webpage’s generic size guide instead says Core 9 gpm, Pro 12 gpm and Max 20 gpm. Its bathroom bands also differ for the largest version. Keep that discrepancy visible and request a resolved exact-model recommendation. The grain figures are not a dose-dependent usable-capacity table; they do not independently establish regeneration frequency or annual salt use.

Use measured hardness and actual demand to choose a version

The setting instructions call for hardness from a water test. The family page’s technical rows supply model-specific flow context, but bathroom count alone does not describe simultaneous use or daily hardness load.

Give the provider a concise selection record:

  • Untreated hardness, its units, sampling location and test date.
  • Expected treated daily water use and the fixtures actually supplied through the softener.
  • Important simultaneous-use combinations and their duration.
  • Available pressure and the full treatment/plumbing layout.
  • The exact version, applicable program and resolved service-flow statement.

For illustration, 300 gallons/day × 20 grains/gallon = 6,000 grains/day before reserve and other application factors. This is hypothetical arithmetic, not a household measurement. Ask for the selected unit’s dose-dependent capacity and reserve rules before converting that load into days between regenerations. Our softener sizing guide supplies broader context without assigning a family-wide program.

Match the source water and the complete installation

The SS1/SS4 manual table and caution lists 25–80 psi, 36–120°F and pH 6.5–10, and says to speak with SpringWell customer service before installing on well water. The current product page lists those ranges for all three versions, but that does not fill in the missing SS+ manual details or establish universal well-water suitability.

Have the provider document actual water conditions and any required pretreatment. A softener-family name is not a drinking-water safety determination or evidence for every contaminant claim. Confirm the selected model’s connection, drain/backwash provision, support, access and power requirements against the supplied documents. The listed tank dimensions also leave out surrounding installation/service space. A larger SS+ is not a substitute for reviewing an unsuitable inlet condition or a restricted drain.

Check the bypass and every installation line item

The manual contents page lists a softener tank, brine tank, electronic head, power supply, drain line and fittings. It marks the bypass valve sold separately. The current family webpage also presents a bypass installation add-on. Do not assume a photographed package or a generic list establishes what a specific order includes.

Ask for an itemized layout and bill of supplied equipment: selected tank/control, bypass or approved isolation arrangement, plumbing connectors, power connection, regeneration drain, brine connection and overflow provision. Confirm which items the installer supplies. The manual contains some references to a prefilter housing, but its contents page does not establish that this softener purchase includes a sediment filter. Any separate filtration must have its own identity, treatment purpose and maintenance scope. Keep those details alongside the selected-model specification before judging installed prices as equivalent.

Use the matched program rather than copying a family default

The advanced-settings pages explicitly separates SS1 steps from SS4 steps. It supplies a 32,000-grain capacity entry and 8-minute brine-refill entry for SS1, then a 48,000-grain entry and 10-minute refill entry for SS4 on the following page. The cover names SS+, but this captured instruction set does not supply the corresponding SS+ advanced entries.

These are source-specific programming values, not universal recommendations for every control, revision or water condition. Do not borrow SS4 settings for SS+ or enter untreated-hardness defaults instead of a measurement. Identify the installed head and supplied instructions, and record the provider’s capacity, reserve, refill, override and regeneration-time setup. The SpringWell settings guide keeps that model boundary explicit. Retain a commissioning record so a later power, app or performance problem can be assessed against the intended configuration rather than solved by an improvised factory reset.

Plan ongoing salt and brine care separately from sizing

SpringWell’s salt-type support article recommends salts intended for softeners and describes standard softener pellets; it does not turn household table salt into an equivalent product. Ask for the selected configuration’s refill and regenerant requirements, especially before changing regenerant type or settings. No annual salt budget is calculated from the family grain headline here.

The brine-maintenance article recommends yearly cleaning when salt is low. Use the complete matched process or arrange service; a short ownership summary is not a substitute for its isolation, cleaning and return-to-service sequence. Support also explains that water in the brine tank can be normal while overflow is a concern. Keep salt additions, service dates, hardness checks and symptoms in an owner record. Persistent hard water, abnormal filling or leaks require assessment of the installed system; see the SpringWell troubleshooting guide.

Require the selected model’s documents before deciding

The manufacturer family page is useful for identifying available version names and published technical rows. It is not an exact-system commissioning record. Compare proposals on the chosen SS identity, resolved flow claim, inlet testing, capacity/program basis, complete layout and recurring salt/service responsibilities.

Request current warranty terms and exact certification scope separately. Product-page badges, family marketing and installation-manual dates do not verify your entitlement or an independent current exact-model listing. Current price, stock, delivery and local installation/service availability remain unverified by this research. Put the applicable documents and unresolved questions with the written treatment quote. This keeps a family shortlist useful while leaving the final supplied-equipment decision tied to its own evidence.

Frequently asked questions

Is this SpringWell page one exact softener model?

No. The catalog route covers the salt-based family, including SS1, SS4 and SS+. Have the selected version and supplied control written on the proposal and matched to its own documentation.

Are the published SS1 and SS4 flows 11/13 or 9/12 gpm?

The current technical table and SS1/SS4 manual state 11 and 13 gpm service. The current webpage’s generic Core/Pro size guide says 9 and 12 gpm. Request a resolved exact-model recommendation rather than silently combining those sources.

Can the SS1/SS4 advanced settings be used for SS+?

The captured instructions name SS+ on the cover but give advanced capacity/refill entries only for SS1 and SS4. They do not establish SS+ programming; obtain the supplied model and control’s matched instructions.

Does the salt-based purchase automatically include a bypass or sediment filter?

The linked manual marks the bypass sold separately and the current page presents it as an add-on. The contents do not establish an included sediment filter. Have the supplier itemize the exact order and separate pretreatment equipment.

Sources for this model guide

  1. SpringWell SS1, SS4 and SS+ installation instructions; undated linked edition — Undated printed edition; title names SS1, SS4 and SS+; 16-page linked installation instructions, no printed revision identifier observed.; reviewed 2026-10-08.
  2. SpringWell Salt Based Water Softener product-family page — Undated current product family page; reviewed 2026-10-08.
  3. SpringWell support: water in the brine tank — Support article; printed update/date retained in capture; reviewed 2026-10-08.
  4. SpringWell support: brine tank maintenance — Support article; printed update/date retained in capture; reviewed 2026-10-08.
  5. SpringWell support: softener salt types — Support article; printed update/date retained in capture; reviewed 2026-10-08.
  6. SpringWell support: salt-free conditioning versus softening — Support article; printed update/date retained in capture; reviewed 2026-10-08.

Known product details

Manufacturer
SpringWell
Model or family
SpringWell Salt Based Water Softener System
Catalog name
SpringWell Salt Based Water Softener System
Product category
Water softener
Product family
Salt-Based Softening
Historical equipment price
No current verified price; equipment and installed-scope pricing require current confirmation.
Source reviewed
2026-08-16

Evidence and source boundary

Price and availability notes are historical source records, not live offers or stock checks. After any stated verification expiry, obtain a new seller check before relying on the value.

Manufacturer catalog presence was observed in the pinned source workbook. Current stock, dealer authorization, installation scheduling, and address-level service are not verified.

The controlling source for this catalog observation is springwellwater.com, reviewed on 2026-08-16. A manufacturer page may change, redirect, or describe a family rather than every configuration; compare the exact current documentation before purchase.

What still needs confirmation

  • Certification: verify the exact model number, contaminant or reduction claim, standard, listing scope, and current certificate.
  • Sizing: match household demand, flow, plumbing, pressure, water chemistry, and waste/discharge requirements.
  • Ownership: confirm current equipment price, installation scope, consumables, maintenance intervals, warranty conditions, and service access.
  • Availability: manufacturer catalog presence does not establish current stock, dealer authorization, installer capability, or local availability.

How to use this record

  1. Copy the exact model or family name shown above.
  2. Open the cited manufacturer source and confirm that the current page still matches.
  3. Request the current model-specific specification sheet, certification listing, warranty, and installed-scope quote.
  4. Use water evidence and site constraints before comparing this product with alternatives.
