Gemline / Nugen Fusion XT-70ER

Manufacturer-listed water softener record in the Fusion XT / Gemline family.

Water softenerEvidence still partialNot current inventory
Gemline / Nugen Fusion XT-70ER

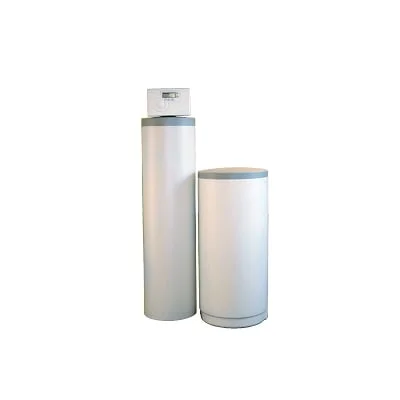

Product image associated with the cited manufacturer record.

Buyer and owner guide · reviewed Oct 8, 2026

At a glance: The Fusion XT-70ER is the efficiency-rated version of the Fusion XT-70. The NuGen manual gives it the same capacity, flow, resin and tank size as the XT-70, plus a demand-initiated-regeneration rating of 4,042 grains per pound of salt at a 9.81-pound salt dose and 61.9 gallons of water per regeneration. That rating holds only at the stated dose, so the programmed salt setting matters more than the label.

Water System Guide is an independent research publisher. This model-specific document review was completed October 8, 2026. It is not a household performance test, installer quote or confirmation of current warranty, stock, price or certification records.

What the XT-70ER data sheet adds

The XT-70ER performance data sheet, printed page 34 is the only Fusion XT sheet with a rated efficiency: 4,042 grains per pound of salt at the minimum salt dose of 9.81 pounds, with 61.9 gallons of water consumption. It describes the XT-70ER as a demand initiated regeneration (DIR) softener that complies with specifications intended to minimize the regenerant brine and water used in operation.

The sheet also limits the claim. Efficiencies are valid only at the stated salt dosages and maximum service flow. The softener has a rated capacity of not less than 3,350 grains of hardness exchange per pound of salt, and it should not deliver more salt or run at a sustained flow above its listed rating. The rating comes from a laboratory test under NSF/ANSI 44, and the manual says operational efficiency in a home is typically lower.

Capacity at each salt dose

The same data sheet lists rated capacity at three doses: 39,000 grains at 10 pounds of salt, 50,000 at 19 pounds and 60,000 at 32 pounds. These match the XT-70 row on printed page 33. Dividing capacity by salt (our arithmetic) gives about 3,900 grains per pound at the low dose, 2,630 at the medium dose and 1,875 at the high dose.

The model name is not a grain rating. The Gemline brochure's specification table lists the Gemline-70 at 70,000 grains, which does not match the 60,000-grain maximum in the NSF/ANSI 44 data. Use the rated row for the dose the installer will program. Our Fusion XT models comparison lays out every model on the same basis.

Flow, resin and installed size

The XT-70ER sheet lists a 15.9 gpm maximum service flow at a 15 psi pressure loss, 3.2 gpm maximum drain flow during regeneration, 2.18 cubic feet of resin and a 1-inch pipe size. Working pressure is 40–90 psi and operating temperature 40–100°F, on 120 V, 60 Hz power. The media tank and valve measure 12 inches wide by 60 inches high, with a 14 x 14 x 34-inch brine tank.

The May 2023 Gemline brochure lists a different brine tank, 18 x 18 x 40 inches, for its 70-size system. Confirm which brine tank is being delivered and plan the space for it.

Parts that match the XT-70ER

The manual groups the XT-70ER with the XT-48, XT-60 and XT-70 for the drive cap, downflow piston (CV-P-V3011), regenerant piston and spacer stack (CV-P-V3005) on printed page 21. Two parts are specific to the 70-size models: the blue CV-P-V3010-1F injector (printed page 24) and the 3.2 gpm CV-P-V3162-032 drain line flow control (printed page 26).

A wrong injector or flow control can affect brine draw and backwash, so check part numbers after any service. Our Fusion XT parts guide lists the full set of order numbers from the manual.

Settings that decide whether the rating applies

The pre-installation instructions, printed page 4 say the manufacturer presets cycle times, salt dose and exchange capacity, while the installer sets hardness, day override (factory 14) and regeneration time (preset 2:00 a.m.). The efficiency rating on page 34 is tied to the 9.81-pound dose. An XT-70ER programmed for the 32-pound high dose uses salt like any softener at that setting.

Ask the installer to record the configured salt dose and capacity, the hardness entered and the day override. If an error code appears, the manual's troubleshooting table applies to the XT-70ER as to the other models. See our Fusion XT error code guide.

What to put in an XT-70ER quote

Use the manual's data sheet and the Gemline brochure to ask for specifics: the exact model including the ER suffix, the programmed salt dose, the brine tank size, and the bypass and fittings. Also ask which warranty document applies. The 2012 manual and the 2023 brochure publish different exclusions, including a brochure condition on raw-water chlorine above 1 ppm; see our Gemline warranty guide.

This page does not confirm current price, stock or a dealer's service area. Current pricing and installed scope need a written quote.

Frequently asked questions

What does ER mean on the Fusion XT-70ER?

The NuGen manual does not expand the abbreviation. Its XT-70ER data sheet identifies the model as a demand-initiated-regeneration softener with a rated efficiency of 4,042 grains per pound of salt at a 9.81-pound salt dose.

Is the Fusion XT-70ER bigger than the XT-70?

No. The manual lists the same capacity at each salt dose, the same 15.9 gpm service flow, the same 2.18 cubic feet of resin and the same 12 x 60-inch tank for both models.

How much capacity does the Fusion XT-70ER have?

The manual rates it at 39,000 grains with 10 pounds of salt, 50,000 grains with 19 pounds and 60,000 grains with 32 pounds per regeneration.

Does the XT-70ER efficiency rating apply at every setting?

No. The data sheet says efficiencies are valid only at the stated salt dosages and maximum service flow rate, and that operational efficiency in a home is typically lower than the laboratory rating.

Sources for this model guide

  1. NuGen Fusion XT installation instructions and owners manual (distributor-hosted) — Footer revision 5/10/2012; reviewed 2026-10-08.
  2. Gemline Water Softening Series brochure — PDF created May 2023; reviewed 2026-10-08.

Known product details

Manufacturer
Gemline / Nugen
Model or family
Fusion XT-70ER
Catalog name
Fusion XT / Gemline 70ER Water Softener
Product category
Water softener
Product family
Fusion XT / Gemline
Historical equipment price
No current verified price; equipment and installed-scope pricing require current confirmation.
Source reviewed
2026-08-16

Evidence and source boundary

Price and availability notes are historical source records, not live offers or stock checks. After any stated verification expiry, obtain a new seller check before relying on the value.

Manufacturer catalog presence was observed in the pinned source workbook. Current stock, dealer authorization, installation scheduling, and address-level service are not verified.

The controlling source for this catalog observation is find.wqa.org, reviewed on 2026-08-16. A manufacturer page may change, redirect, or describe a family rather than every configuration; compare the exact current documentation before purchase.

What still needs confirmation

  • Certification: verify the exact model number, contaminant or reduction claim, standard, listing scope, and current certificate.
  • Sizing: match household demand, flow, plumbing, pressure, water chemistry, and waste/discharge requirements.
  • Ownership: confirm current equipment price, installation scope, consumables, maintenance intervals, warranty conditions, and service access.
  • Availability: manufacturer catalog presence does not establish current stock, dealer authorization, installer capability, or local availability.

How to use this record

  1. Copy the exact model or family name shown above.
  2. Open the cited manufacturer source and confirm that the current page still matches.
  3. Request the current model-specific specification sheet, certification listing, warranty, and installed-scope quote.
  4. Use water evidence and site constraints before comparing this product with alternatives.
